Model Number : CTL535R
Brand Name : Cenlee
Place of Origin : Hunan, China
MOQ : 1
Max Speed : 5350RPM
Max RCF : 5030xg
Material : steel
Size : 700x660x410
Weight : 95kg
Max capacity : 3000ml
Speed Accuracy : 10r/min
Temperature range : -20~+40C
Power : 1100w
Noise : 55dBA
Rotor capacity : 4x750ml
Temperature accuracy : ±1℃
Timing range : 0-999min
Power supply : AC 220V 50Hz 18A
Chamber diameter : Φ420

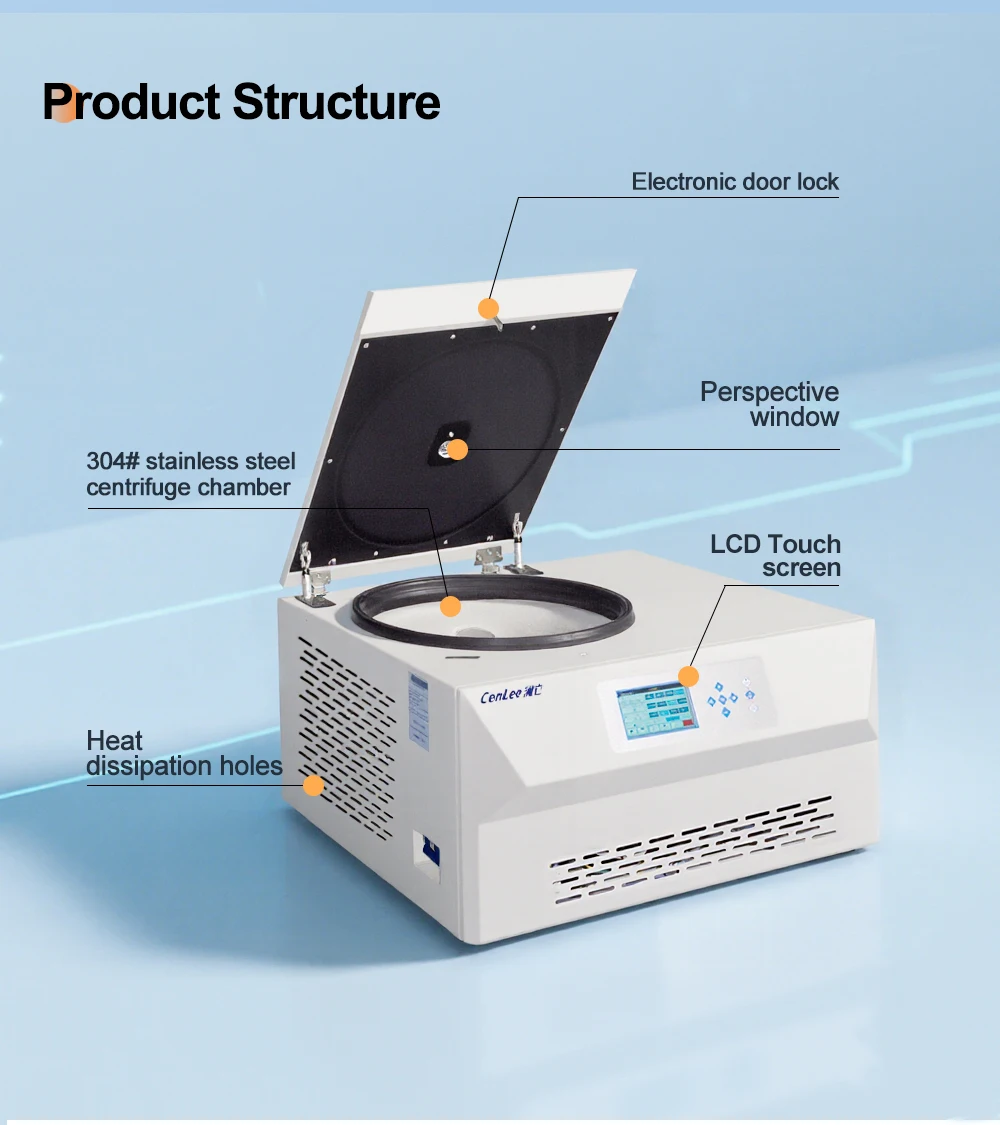

Precision Cold Centrifuge Machine CTL535R – Efficient Separation for Oils & Extracts
Features
1. Microcomputer control, AC variable frequency motor drive, low noise, energy saving and environmental protection.
2. Instantaneous centrifugation and continuous centrifugation, a variety of memory centrifugal condition storage and program operation functions
3. Large-screen LCD display, humanized interface, dual-purpose touch buttons, can display the set value and actual value at the same time, display the running rotor capacity.
4.10 sets of acceleration and deceleration settings, unique damping shock absorption system.
5. Powerful refrigeration system, using imported eco-friendly refrigerants, high temperature control accuracy.
6. Equipped with multiple protections such as over speed, over temperature, door cover self-locking, unbalanced, stainless steel inner sleeve, and three-level protective sleeve to ensure the safety of people and machines.
7. When the countdown time less than one minute will display in seconds, and parameters can be changed arbitrarily during operation without stopping the machine.
8. Good temperature control effect, all the rotors can be maintained at 4℃ at the highest speed.
Food Industry: Separation of edible oils (olive, coconut, sunflower).
Biofuel Research: Purification of biodiesel and fatty acids.
Pharmaceuticals: Isolation of plant-based bioactive compounds.
Laboratories: Cell culture, lipid research, and protein extraction.
| CTL535R | ±1℃ | ||
| 5350r/min | 0-999min | ||
| 5030×g | AC 220V 50Hz 18A | ||
| 3000ml | ≤55dB(A) | ||
| ±20r/min | 700×660×410mm | ||
| 1100W | Φ420 | ||
| -20℃~+40℃ | 95kg |

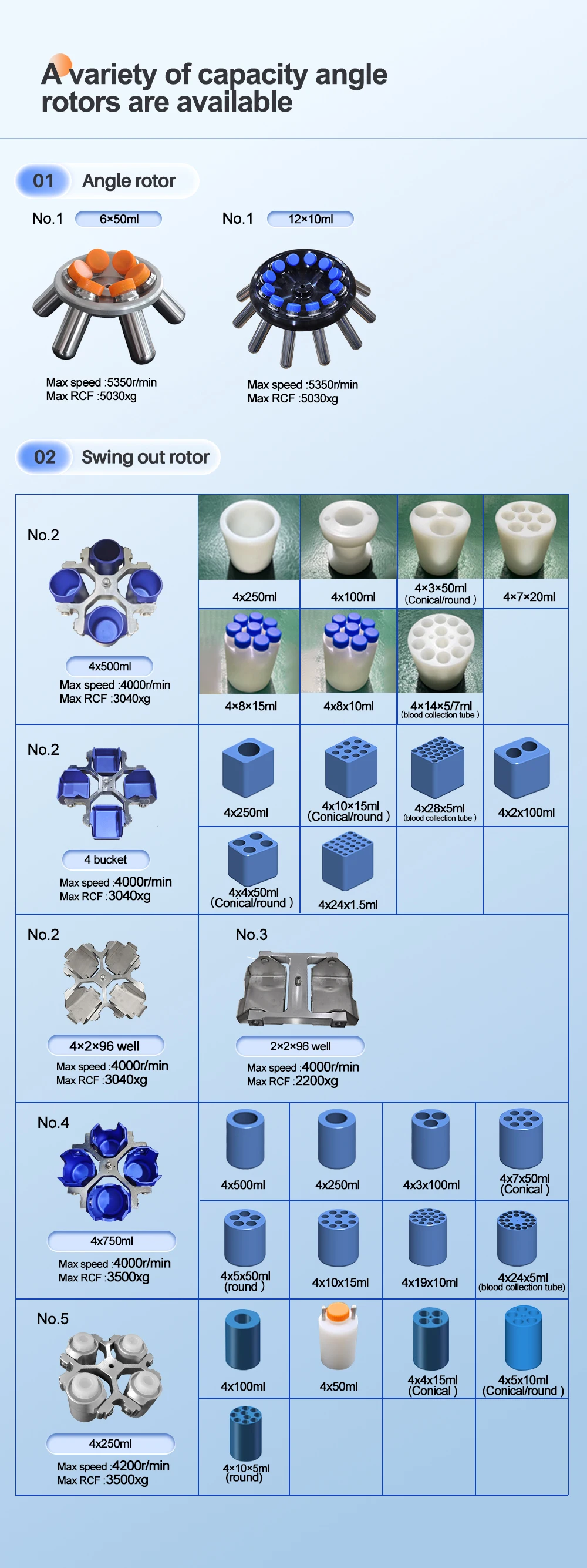

CTL535R Rotor
| No. | Capacity | Max Speed(r/min) | Max RCF(×g) | |
| CTL535R |
| 5350 | 5030 | |
| Angle rotor | NO.1 | 6×50ml | 5350 | 5030 |
| Swing rotor | NO.2 | 4×500ml | 4000 | 3040 |
| Test cup | 4×500ml | |||
| 4×19×5ml | ||||
| 4×9×15ml | ||||
| Adapter | NO.2 | 4×7×20ml | 4000 | 3040 |
| 4×3×50ml | ||||
| 4×300ml | ||||
| 4×100ml | ||||
| Swing cup | 4×24×5ml(vacuum tube) | |||
| 4×37×7ml(vacuum tube) | ||||
| Micro plate rotor | 4×2×96 Well | |||
| Square buckets | 4x Buckets | |||
| Adapter | 4×250ml | |||
| 4×4×50ml (cone form bottom) | ||||
| 4×4×50ml (Round bottom) | ||||
| 4×25×1.5ml | ||||
| 4×10×15ml (cone form bottom) | ||||
| 4×10×15ml (Round bottom) | ||||
| 4×20×10ml | ||||
| 4×28×5ml | ||||
| Swing rotor | NO.3 | 4×750ml | 4000 | 3500 |
| Swing test cup | 4×750ml | |||
| Adaptor | 4×500ml (cone form bottom) | |||
| 4×300ml | ||||
| 4×500ml | ||||
| 4×2×100ml | ||||
| 4×10×20ml | ||||
| Adaptor | NO.4 | 4×4×50ml (cone form bottom) | 4000 | 3500 |
| 4×4×50ml | ||||
| 4×14×15ml (cone form bottom) | ||||
| 4×19×15ml | ||||
| 4×24×7ml | ||||
| 4×37×5ml | ||||
| Swing rotor | NO.5 | 4×250ml | 4200 | 3500 |
| Swing test cup | 4×250ml | |||
| Adaptor | 4×7×10ml | |||
| 4×10×5ml | ||||
| 4×4×20ml | ||||
| 4×100ml | ||||
| 4×6×15ml | ||||
| 4×4×15ml (cone form bottom) | ||||
| NO.6 | 4×50ml (cone form bottom) | 4200 | 3500 | |
| 4×50ml | ||||
| 4×8×1.5ml | ||||
| Micro plate rotor | NO.7 | 2×2×96 Well | 4000 | 2200 |


|
|
Precision Refrigerated Centrifuge with 10 Sets of Acceleration and Deceleration 5350RPM Max Speed and 5030xg Max RCF Images |
